| 24' x 40' Second Floor Addition
(960 Additional Square Feet) |
|

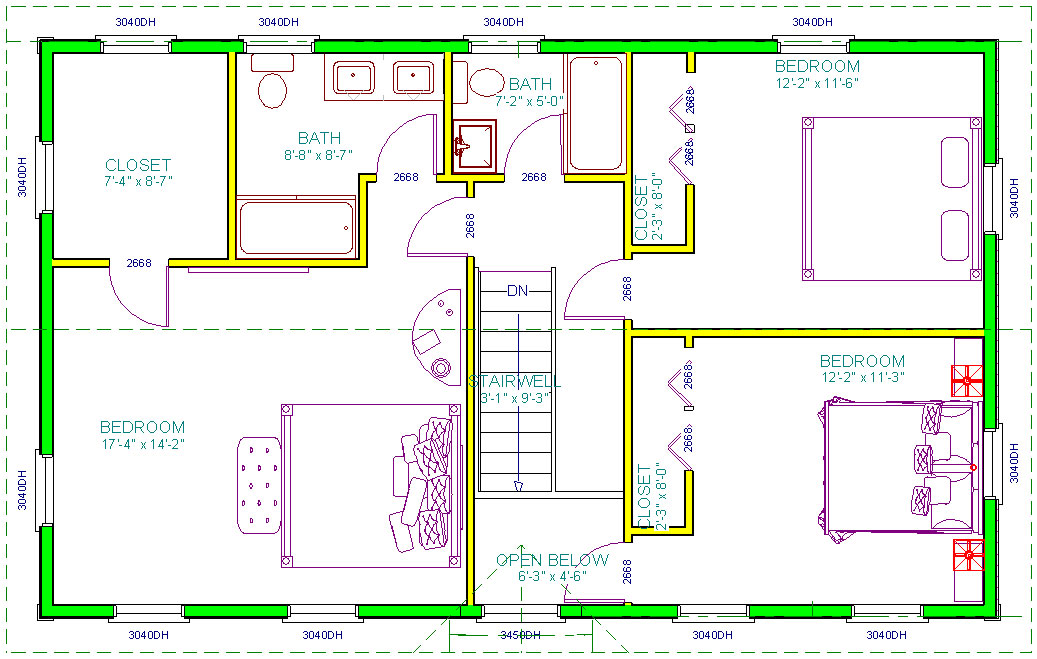

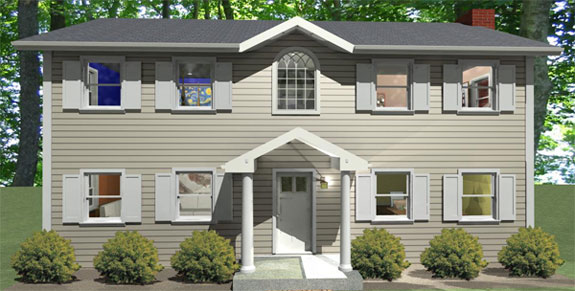

| Description: Add space by adding a second floor. This addition is based on a very common single floor ranch, but it can be easily adapted to any single level home. The new addition will allow you to better utilize the space on the first floor for entertaining and recreation. The new second floor will have plenty of space for three bedrooms, 2 bathrooms and plenty of closets. This add-a-level design allows you to have a dramatic 2 story foyer and a staircase that overlooks the foyer. Construction: The existing roof will be completely removed and a new second floor will be built over the existing house. Some existing walls on the first floor will be reconfigured to allow for a staircase to access the second floor. At the end of the hallway a balcony will allow you to look over into the foyer below. A new gable roof will be added with usable attic space, and a small overhang over the front door will provide protection from the elements when entering the home. |
 Size | 17' x 14' | 9' x 9' | 12' x 11' | 12' x 11' | | 7' x 5' | Closet | 7' x 9' | | 2' x 8' | 2' x 8' | | | Flooring | carpet | tile | carpet | carpet | carpet | tile | Trim | painted | painted | painted | painted | painted | painted | Doors | 2 | 1 | 3 | 3 | | 1 | Windows | 5 | 1 | 3 | 2 | 1 | 1 | Lights | 1 central | 1 central | 1 central | 1 central | 1 central | 1 central | Outlets | yes | yes | yes | yes | | yes | TV/Cable | yes | | yes | yes | | | Phone | yes | | yes | yes | | | Room Paint | yes | yes | yes | yes | yes | yes | Vanity | | double | | | | single | Vanity light | | yes | | | | yes | Vanity marble top | | yes | | | | yes | Bathtub | | yes | | | | yes | Shower | | yes | | | | yes | Toilette | | yes | | | | yes | Faucets | | 3 | | | | 2 |
 Windows | High efficiency double hung windows with Low-E and Argon gas, (1) fixed picture window with Gothic arch top. All windows are primed wood interior. | | | | Chimney | Extension of existing chimney so that its top ends 2 feet past roof height, chimney cap included. | | | | HVAC | Removing the existing system and replacing it with a high-efficiency central heating and air conditioning system on two zones. Zone 1 on the first floor, Zone 2 on the second floor. | | | | Electrical | Disconnect existing electrical service cable to house and reinstall on the roofline of the addition. Upgrade existing panel to 200 amp. New outlets in all rooms, bedroom outlets will be arc fault protected, bathroom outlets will be GFCI protected, centralized light fixtures in all rooms and hall area with a standard switch. | | | | Plumbing | Pex water supply piping, ABS drainage piping, connection to existing water and sewer hookups. |
Buy this Second Story Addition for $710 a month or $121,694 today! |
Do It Yourself Price "DIY" (Subtracts: Trim, Paint, Flooring & Interior doors): $624 mo or $106,963 |
$545 | 3' x 5' High efficiency double hung window with Low-E and Argon gas. | | | | $1,250 | Velux - electric venting skylight with remote. | | | | $1,150 | Double French door. | | | | $135 | Recessed light. | | | | $5,000 | Fireplace - direct venting - gas or propane - includes mantle & surround. |
| |
|
